SW901AB OSCILLATOR BANK

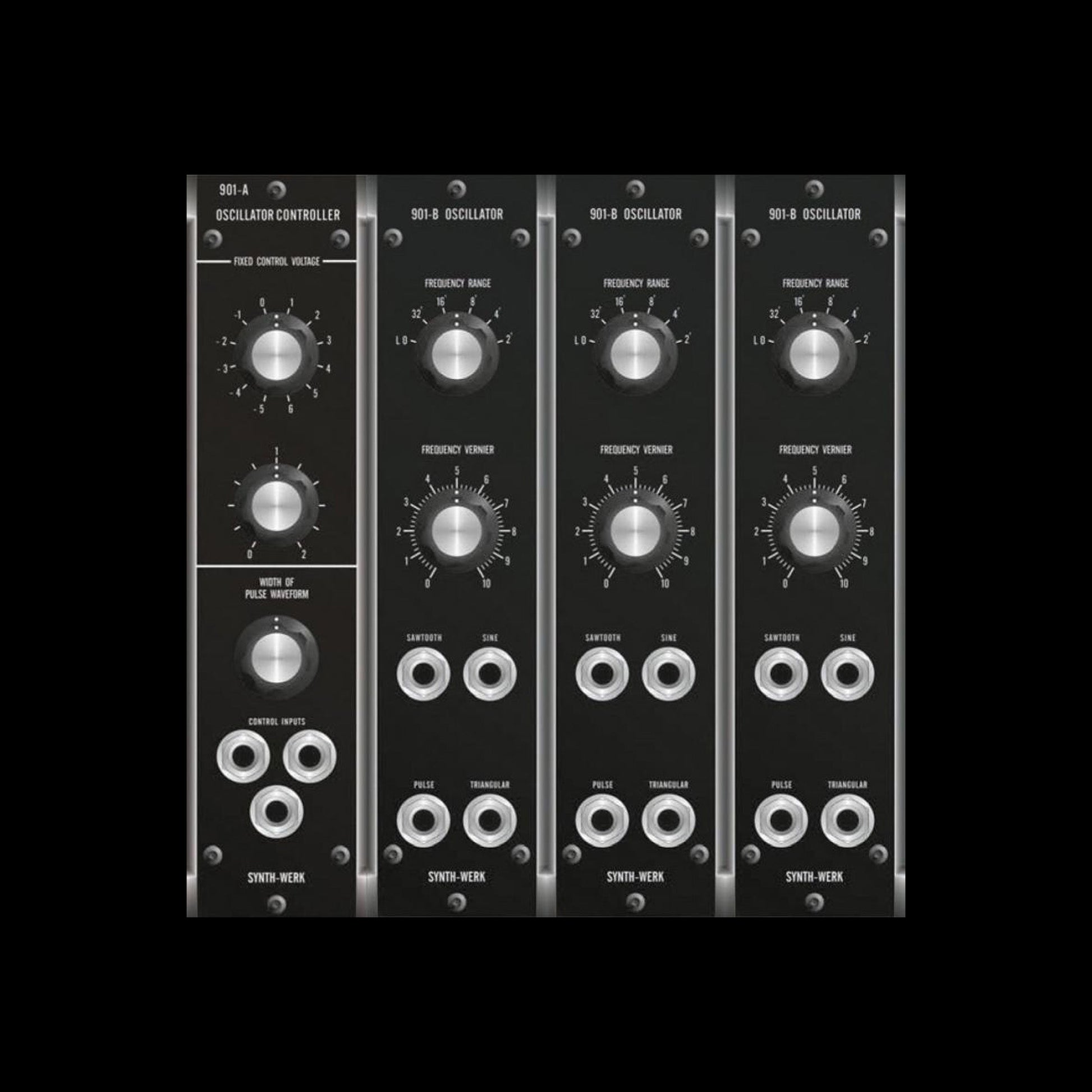

The SW901A Oscillator Controller and the SW901B Oscillator are, respectively, the controlling and the oscillating / wave-shaping sections of the SW901 Voltage Controlled Oscillator. The separation of the functions of the SW901 into two modular instruments allow the assembly of a bank of oscillators, all of which are controllable from one controller. The SW901A panel contains the control voltage input jacks and potentiometer which vary the frequencies of all the controlled oscillators simultaneously. The SW901B panel contains frequency range controls and fixed level output jacks for each waveform. One controller may control up to 7 Oscillators. A bank of oscillators in which the intervals between the frequencies remain constant as the frequencies themselves are varied obviously has great musical value.

This Module is based on the original design from 1964
