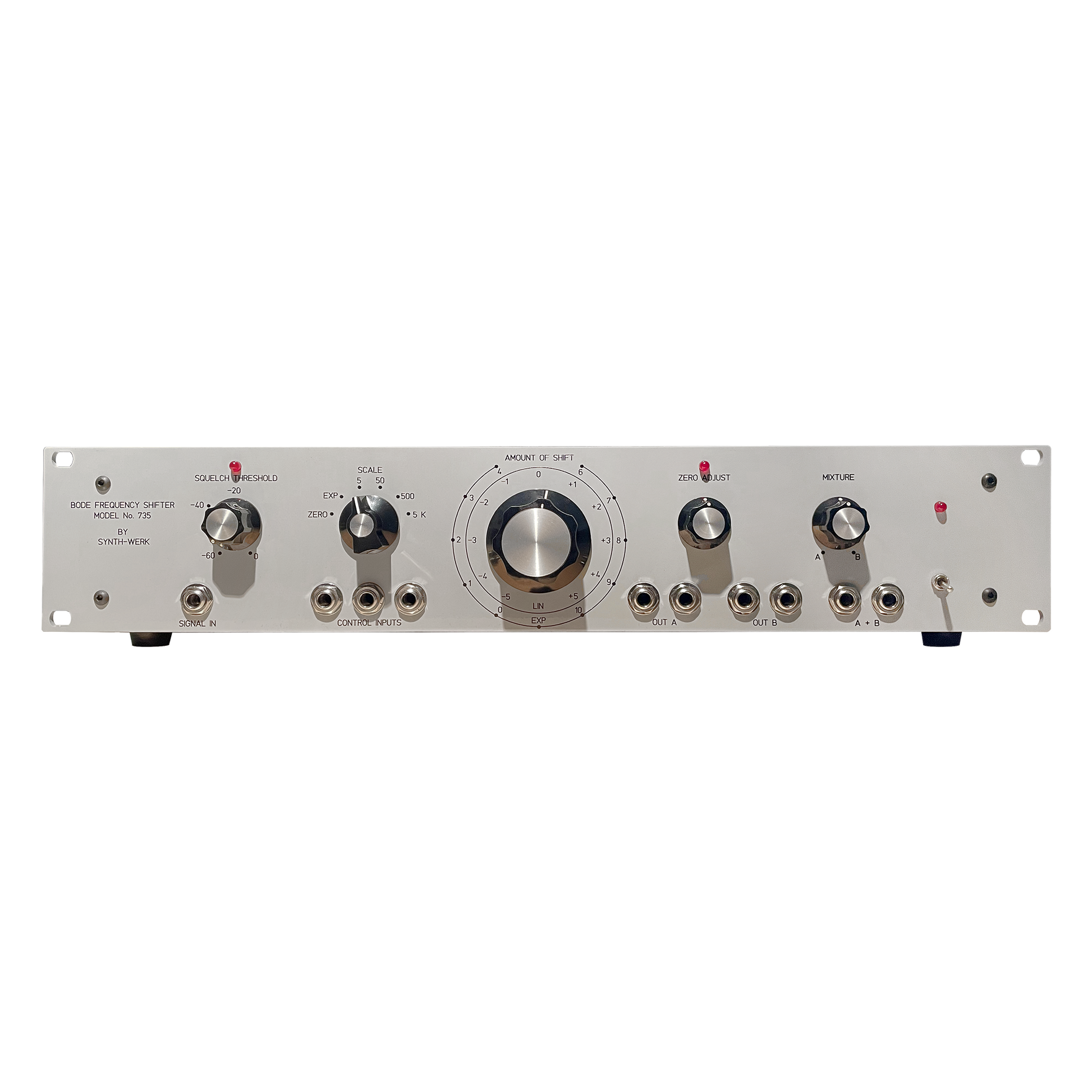

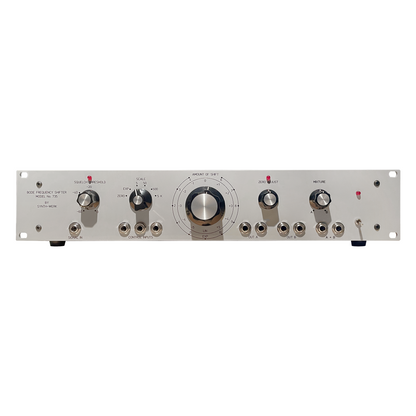

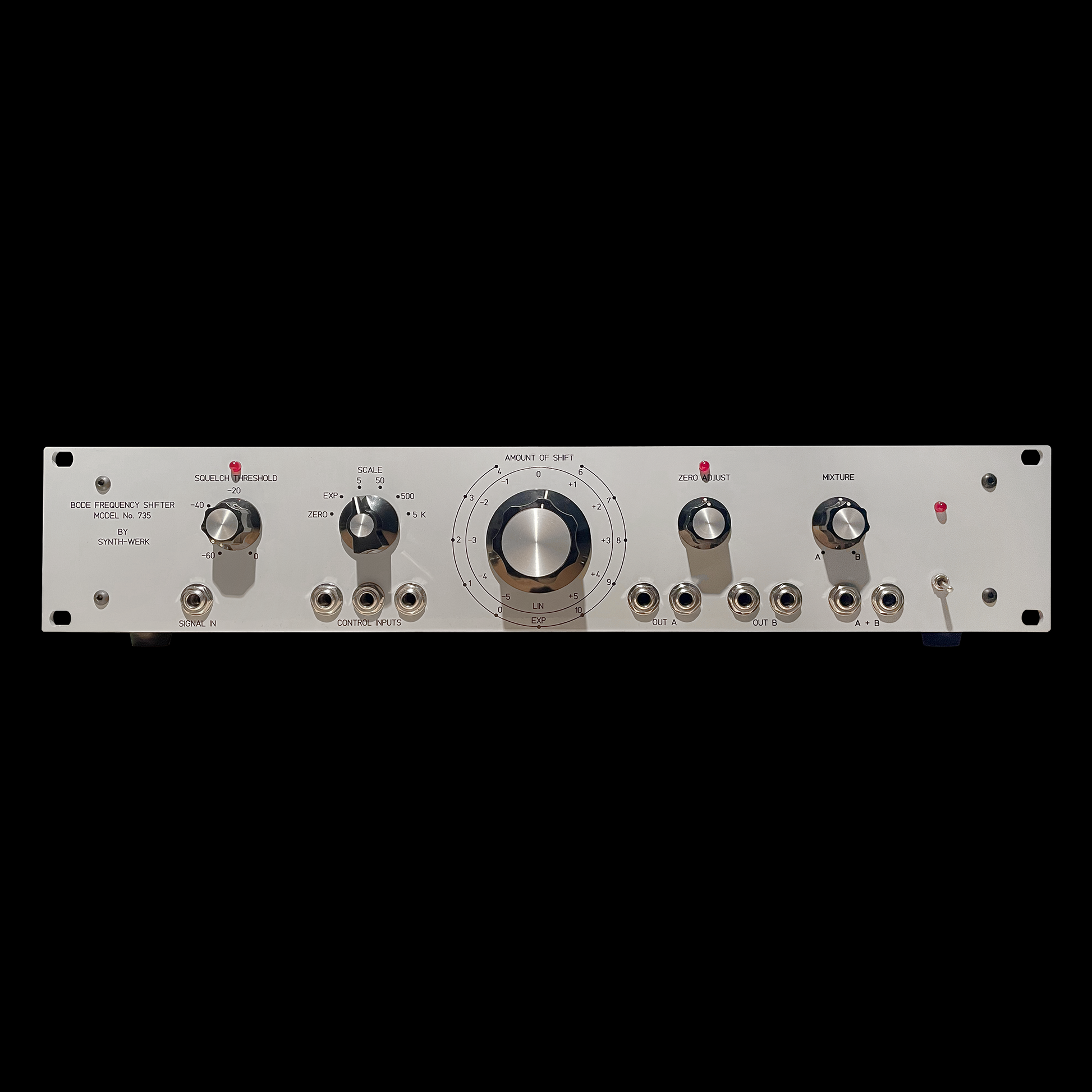

SW 735 BODE FREQUENCY SHIFTER
The Model SW 735 is the rack version of the Bode Frequency Shifter including a power supply.
From an electrical point of view it is identical to the Model SW 1630.
This Module is based on the original design from 1974
| Nominal Input Impedance: | 50k ohm |
|---|---|
| Nominal Input Level: | +2dBm |
| Frequency Range: | 30Hz to 16kHz |
| Nominal Output/Input gain: | Unity |
| Less than 0.1% total hum and noise | |
| Variable threshold squelch minimizes apparent carrier bleedthrough due to input signal background noise | |
| Accurately shifts input signals over the audio frequency range of: | 30 Hz – 16 kHz |
| Amount of shift is continuously variable from | -5 kHz, through zero to +5 kHz |
| Amount of shift is accurately voltage variable – either linear or exponential control mode is available | |
| Less than 1% total unwanted modulation and distortion products | |
| Power requirements: | +/-15 Volt at + 100 mA / -100 mA |
