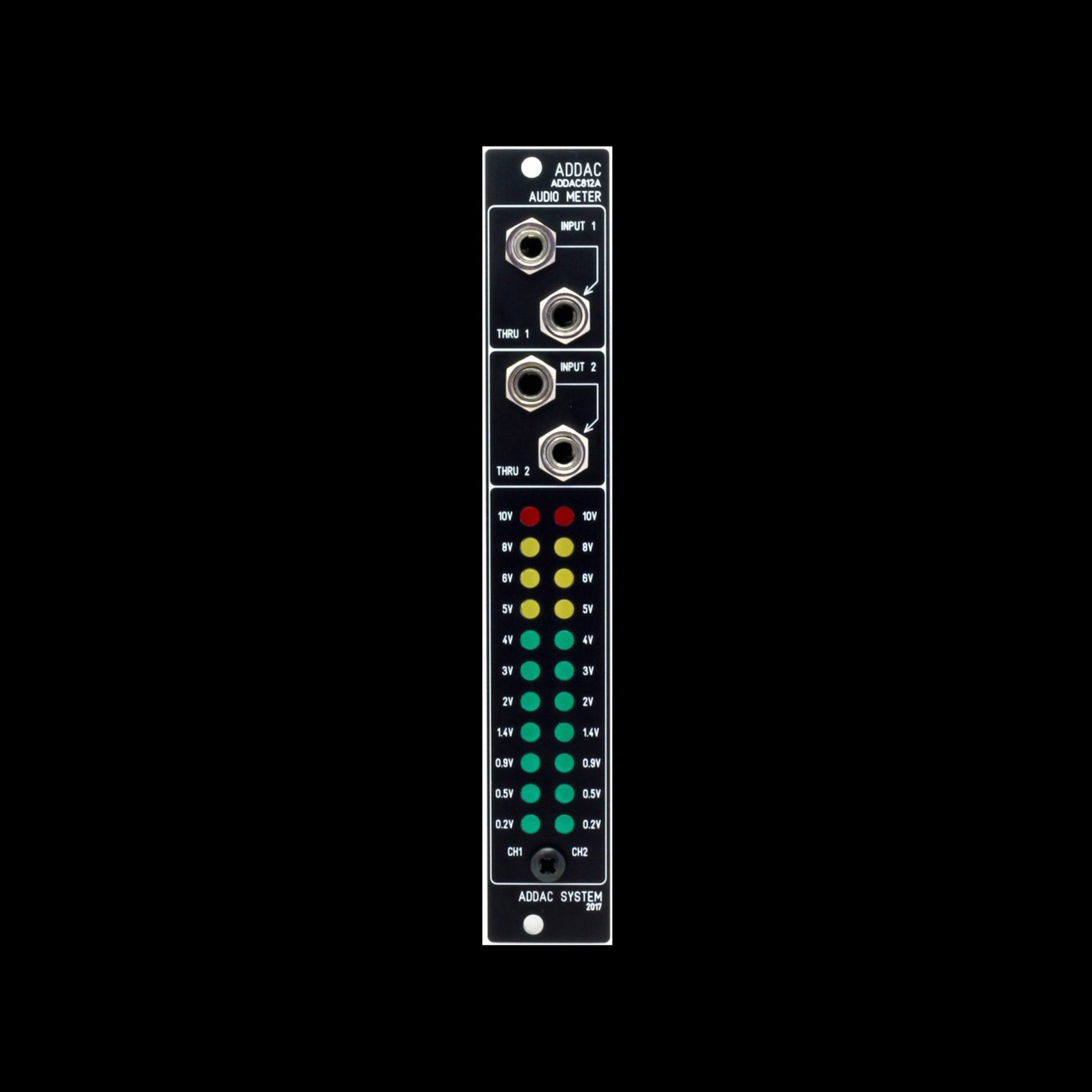

stereo/dual audio meter with buffered thru outputs for each channel. 11 pairs of led indicate the audio levels up to 10v. green lights go up to 5v, yellow almost reach 10v and 10v is red, indicating peaking. since modulars use voltages we decided to use volts and not dbs as a measurement that makes more sense for our favorite system!
mechanical: format: eurorack width: 4 hp depth: 4 cm
electrical: max current: +100ma/-100ma bus board cable: 8 x 2 idc (doepfer style) connector
