4U Shop -BB82 - Dual 8 Step Baby Sequencer [4U-B]

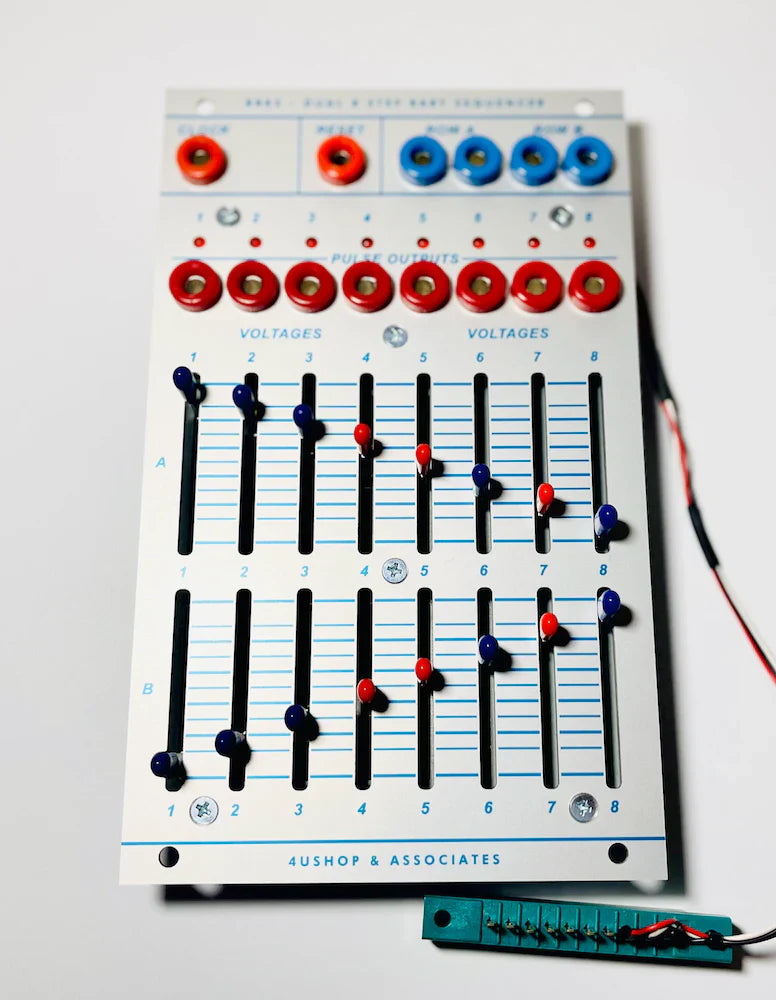

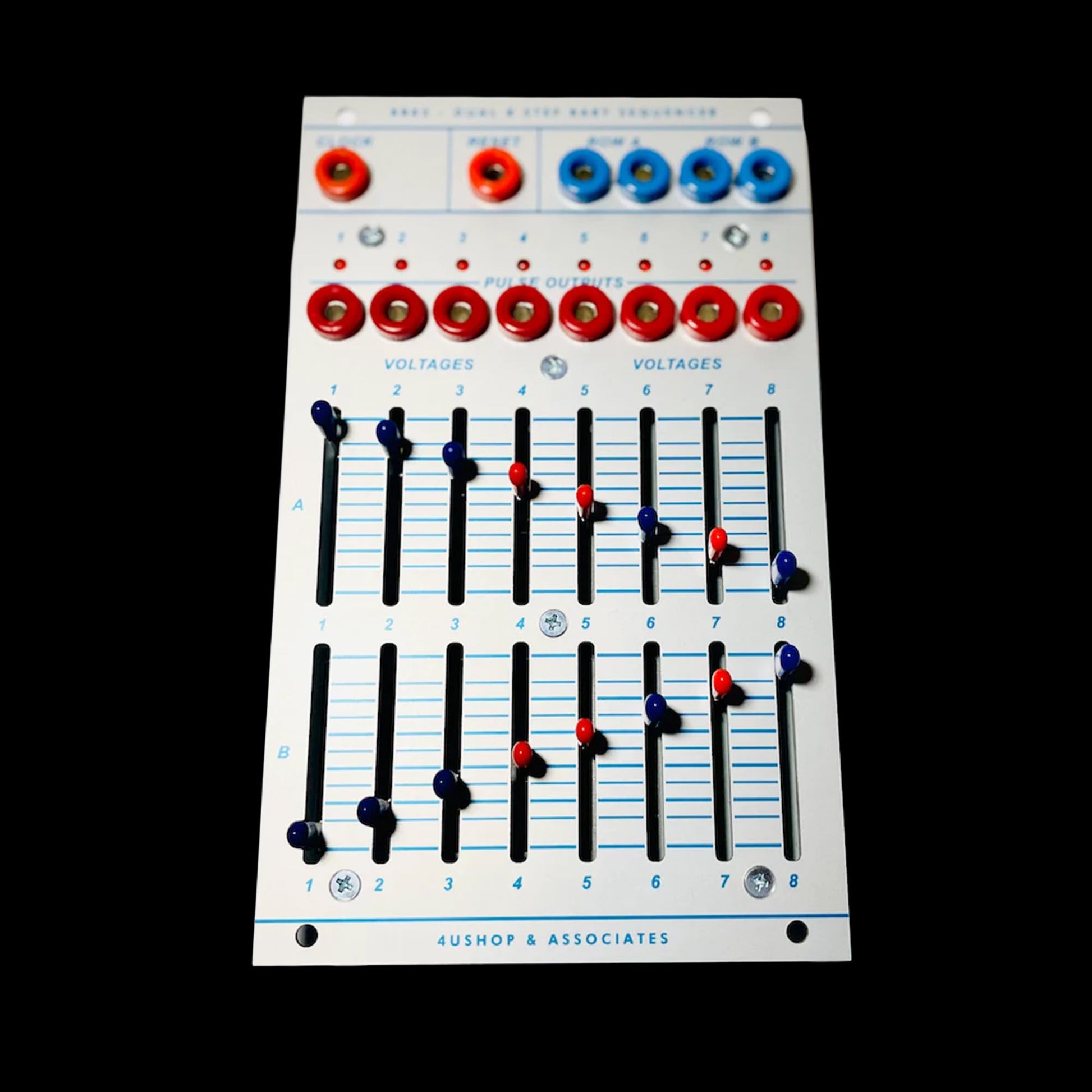

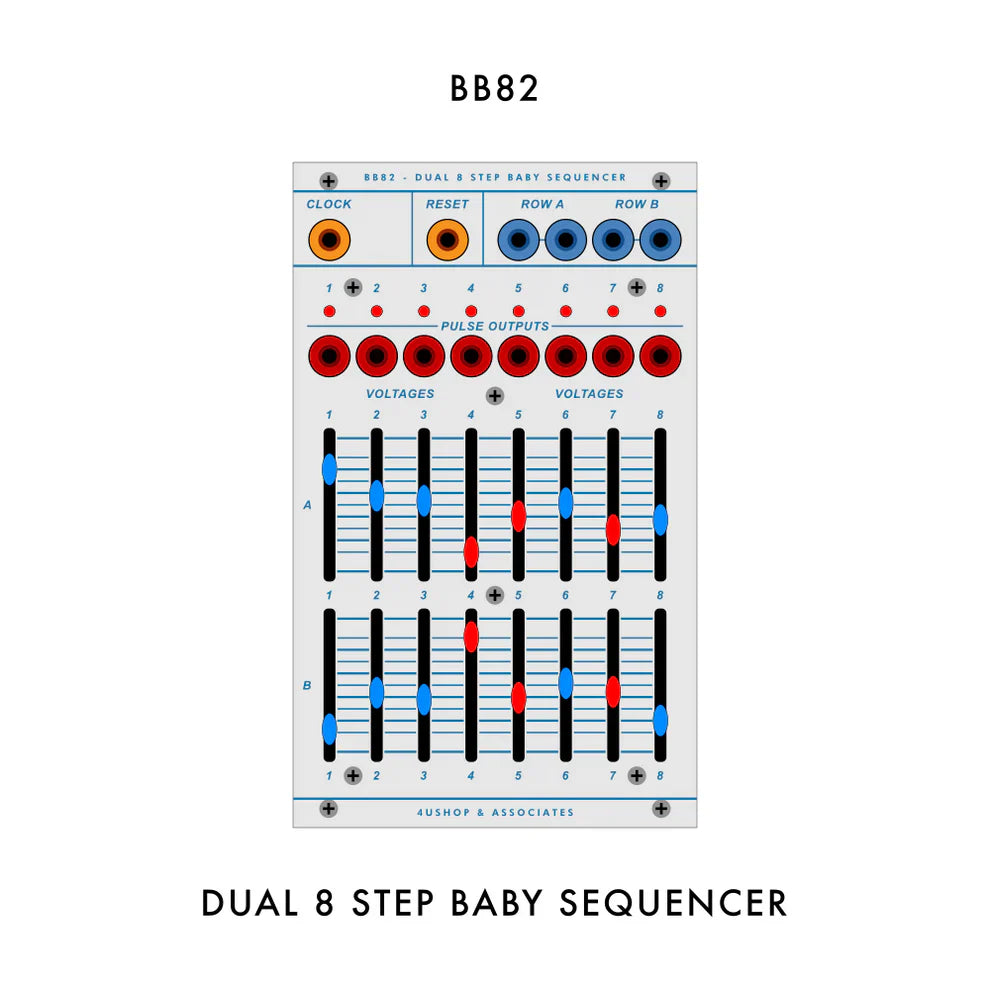

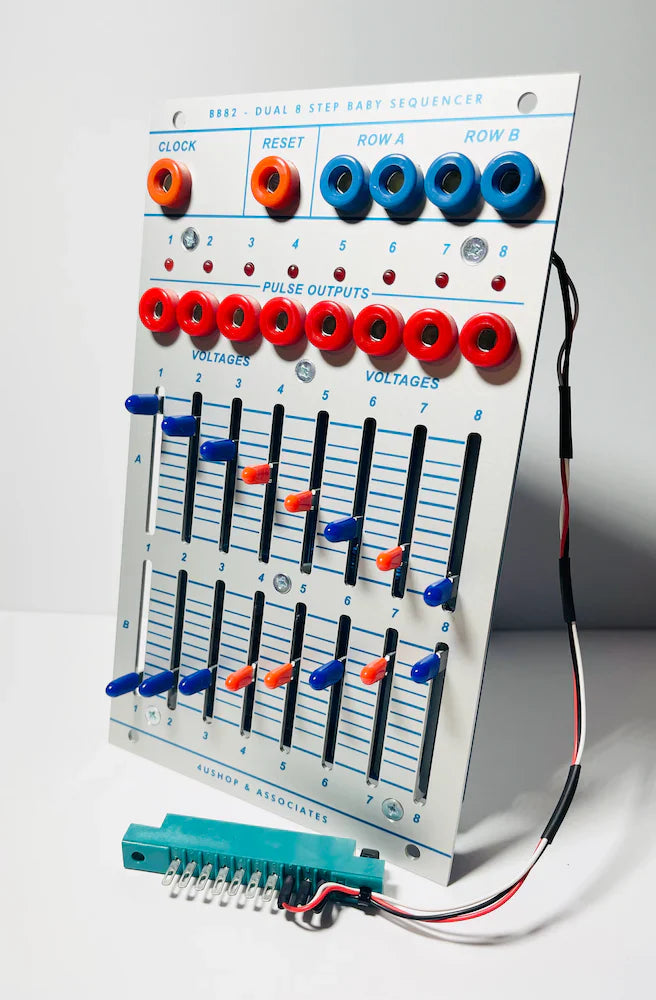

BB82 - dual 8 step baby sequencer

Modular Format is 4U-B [Buchla 4U Modular]

The BB82 is a dual, 8 step sequential voltage source, based
on the well know "Baby Sequencer".

BB82 is normalled to play 8 step sequences, but please note
if you patch one the Pulse outputs to the Reset input,
it'll reset the sequence; for example, patching Pulse 7
to Reset results a 6 steps long sequence.

Pulse outputs also could be used to ping other modules and
Reset also could accept voltages from other modules.

Features:

- clock input accepts literally any kind of clock or gate
- reset input (accepts random voltages from other modules)
- 2 linear, 0-10V voltage outputs
- 8 individual pulse outputs
- black & white printed manual included
- hand-built, hand numbered
